| Sensor | OX03J10 |
| ISP | Built - in Sensor |
| Serializer | MAX96717F |
| Aperture | 2.7 |
| Focal Length | 3.25 |
| FOV | D:142°, H:106°, V:83° |
| TV Distortion | < -16.7% |
| Depth of Field Range | 0.8m ~ ∞ |
| Focus Adjustment Distance | 5m |
| Resolution | 1920H×1536V |
| Frame Rate | 1920*1536@30fps |
| Image Output Format | YUV422@8bit |
| Reset Control Method | TBD |
| IIC Address | 0X6C, 0x6D |
| Operating Temperature | -20℃ ~ +65℃ |
| Storage Temperature | -30℃ ~ +85℃ |
| Optical Axis Precision | / |
| Assembly Process | Manual Focus Adjustment |
| Resolution Power | 0F≥900TVLine, 0.7F≥600TVLine |
| Operating Voltage | 9V±5% |
| Voltage Range | 5V ~ 18V |
| Protection Level | / |
| Material | Metal Shell Structure + 7G + IR Lens |
| Module Weight | TBD |
| Others | 1. No foreign objects, bright spots, dead pixels, stripes 2. Normal current and resistance 3. No glare, ghosting, purple edges |
For any other requirements, please email:union@unimage.com.cn
Global Shutter
Eliminates the jelly effect caused byhigh speed movement, suitable for dynamic AGVenvironments (such as precise image capture when thedriving speed is ≥2m/s).
High-Dynamic-Range(HDR)
Supports a120dBdynamic range, adapting to extreme lighting changes inwarehouses, such as direct sunlight from skylights anddark areas (shelf shadows).
Industrial -grade Protection
lP67-encapsulated.withstanding a temperature range from - 40°C to 105°Cdust - proof and waterproof, suitable for cold - chainstorage or outdoor scenarios.

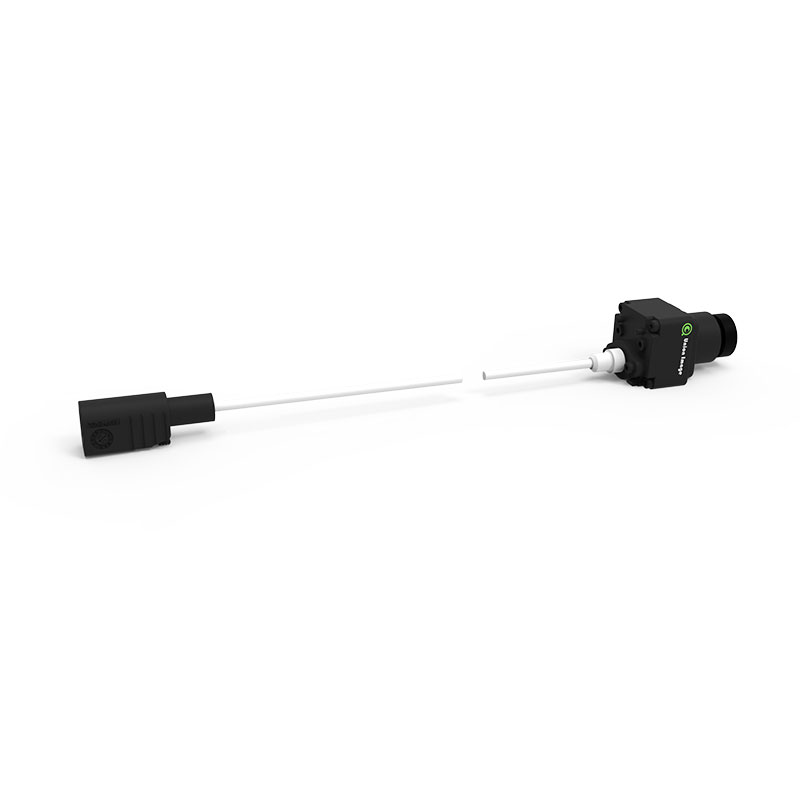

Long-distance Transmission
Achieves 15 - meter relay-free transmission through a single coaxial cable,reducing the complexity of wiring on AGV bodies.
Multi -camera Cascade
Supports 4-channel cameracascading, with a single - link bandwidth of 6Gbps tomeet multi -sensor synchronization requirements.
Bidirectional Control
Real - time adjustment of cameraparameters (such as exposure time and gain) via PC/UART to adapt to dynamic environments.
Transmission Latency
End -to - end latency s50ms(including encoding,transmission, and decoding),meeting the realtime obstacleavoidancerequirements of AGVs.
Power Consumption Optimization
Power consumptionof a single camera module s2.5W, and MAX96717Fstandby power consumption <100mw,suitable forbattery-powered AGVs.
