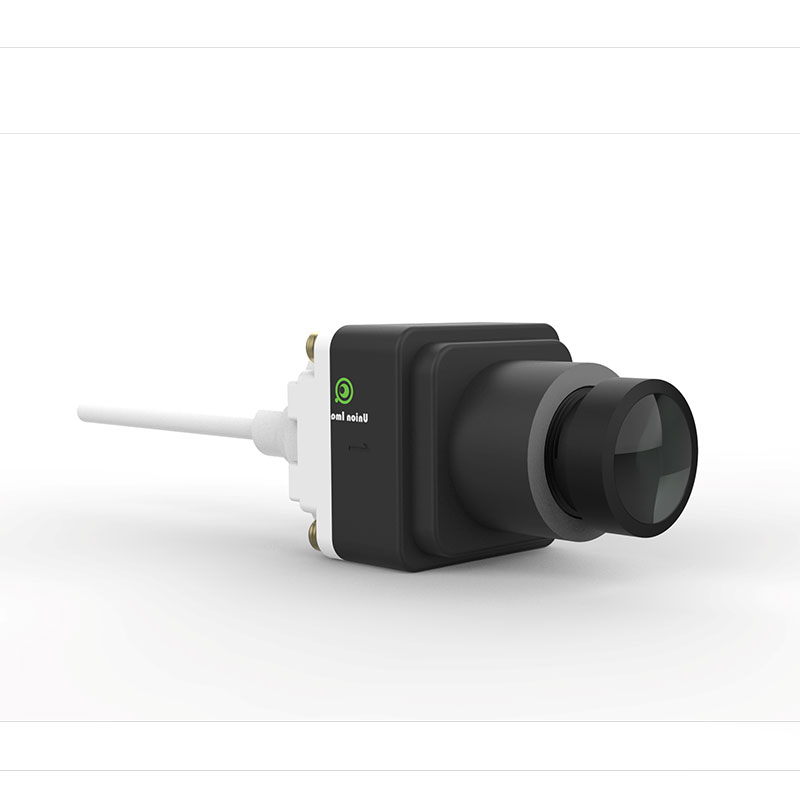

| Sensor | IMX577 |
| ISP | / |
| Lens | SHG102 |
| Serializer | / |
| Aperture | 2.8 |
| Focal Length | 4.0 |
| FOV | D:＞120°, H:＞93°, V:72° |
| Focusing Range | / |
| Focus Distance | / |
| Resolution | 4056×3040 |
| Frame Rate | / |
| Image Output Format | / |
| Reset Control Mode | TBD |
| IIC Address | TBD |
| Operating Temperature | -20℃～75℃ |
| Storage Temperature | -30℃～80℃ |
| Optical Axis Precision | / |
| Assembly Process | Manual Focus |
| Resolution Power | 0.0F≥1800TVLine, 0.7F≥1300TVLine |
| Operating Voltage | 8V±5% |
| Voltage Range | 7 - 16V |
| Protection Level | / |
| Material | Metal shell structure + Lens 6G+IR |
| Module Weight | TBD |
| Others | 1. No foreign objects, bright spots, dead pixels, stripes; 2. Normal current and resistance; 3. No glare, ghosting, purple fringing |
For any other requirements, please email:union@unimage.com.cn
TI's FPD-Link (Flat Panel Display Link) technology is designed for high-speed, long-distance video transmission and has the following characteristics in AGVs/robots:
Anti-interference Transmission: Transmits uncompressed video data via coaxial cables or twisted - pair wires. The maximum distance can reach 15 meters (FPD-Link III), suitable for the electromagnetic interference environment of factories.
Multi-camera Synchronization: Supports multiple cameras to transmit through a single link, reducing wiring complexity (e.g., 4 cameras sharing 1 cable).
Low Latency and High Bandwidth: Supports 720p/1080p@60fps video streams, meeting the requirements of real-time decision-making (such as obstacle avoidance response time < 100ms).
Power and Data Integration (PoC): Supplies power via coaxial cables (Power over Coax), reducing the need for independent power cables and simplifying system integration.
