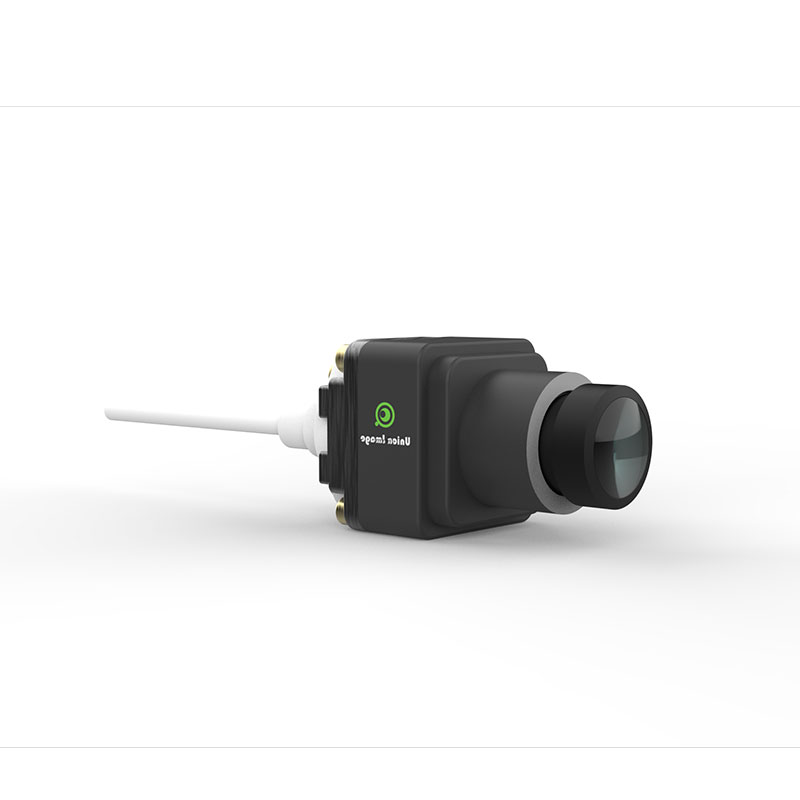

| Sensor | GC2093 |
| ISP | / |
| Lens | SHG098 |
| Serializer | / |
| Aperture | 1.8±5% |
| Focal Length | 3.2±5% |
| FOV | D:＞115°, H:＞98°, V:55° |
| Focusing Range | / |
| Focus Distance | / |
| Resolution | 1920×1080 |
| Frame Rate | / |
| Image Output Format | / |
| Reset Control Mode | TBD |
| IIC Address | TBD |
| Operating Temperature | -30℃～85℃ |
| Storage Temperature | -40℃～125℃ |
| Optical Axis Precision | / |
| Assembly Process | Manual Focus |
| Resolution Power | 0.0F≥800TVLine, 0.7F≥600TVLine |
| Operating Voltage | 8V±5% |
| Voltage Range | 7 - 16V |
| Protection Level | / |
| Material | Metal shell structure + Lens 6G+IR |
| Module Weight | TBD |
| Others | 1. No foreign objects, bright spots, dead pixels, stripes; 2. Normal current and resistance; 3. No glare, ghosting, purple fringing |
Premium Services We offer customized services and support for relevant development driver packages.
For any other requirements, please email:union@unimage.com.cn
For any other requirements, please email:union@unimage.com.cn
360° Environmental Modeling: Cover the environment around the AGV/robot through multiple cameras (such as 4 - 6 channels) to eliminate visual blind spots.
Real - time Obstacle Avoidance: Dynamically detect obstacles (personnel, equipment, shelves, etc.), and combine SLAM (Simultaneous Localization and Mapping) to optimize path planning.
Precise Positioning: Recognize ground markers (2D codes, magnetic strips), shelf features or ceiling reference points, and assist the Inertial Navigation System (INS) to correct position errors.
