Camera Specification:
Streaming Media Camera Module Camera Datasheet

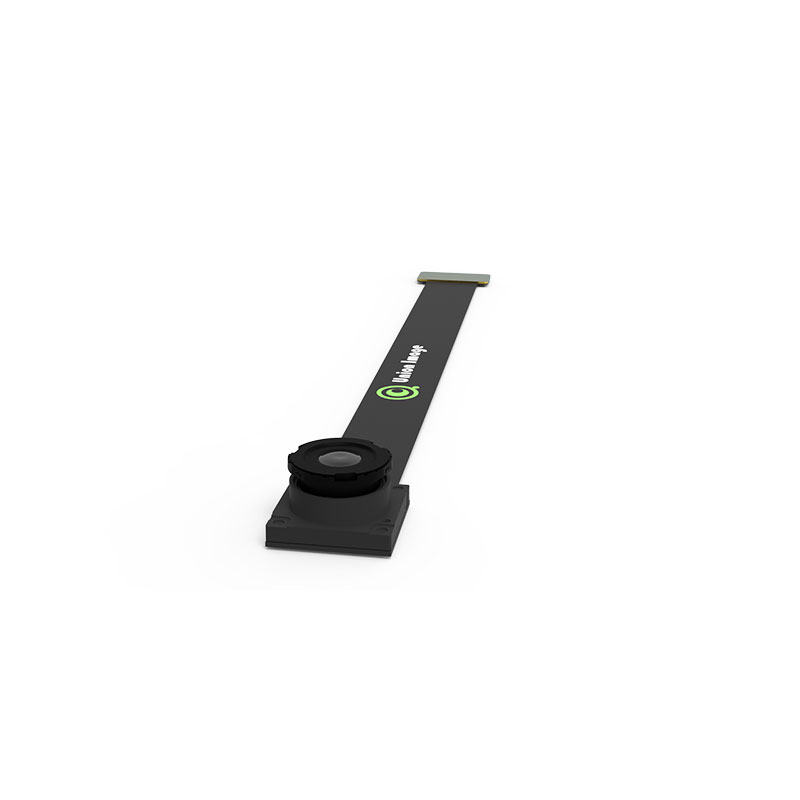

UI5-GC05A2-Wide-MIPI-LHHDF40077
Application Field
Video Conferencing
Sensor
GC
Package Type
COB
Chip Target Surface
1/5.0
Resolution
2K
Frame Rate
30fps
Interface
MIPI
ChromaType
Color
Shutter Type
Rolling
$30.00
$30.00
Inventory:
Want to know more about it, please email union@unimage.com.cn
  • FEATURES
  • APPLICATION
Lens 2D25A - 400
EFL (Effective Focal Length) 1.28mm
F/NO (Aperture) 2.2±5%
Fov(D) (Field of View) 146.5°
Construction 6P
Max Image Circle Φ3.83mm
Focusing Range 18.2cm - inf
TV - Distortion <1.5%
Resolution Center <1000; 0.75F≥800
Base LJ4HBK.508.51.9
Sensor GC05A2 - WC1XA
Silk - screen LHHDF40077V1
Connector OK - 23GM030 - 04
VCM (Voice Coil Motor) --
Driver IC --
Driver IC I2C Address Write: --; Read: --
Sensor I2C Address Write: 0x6E; Read: 0X6F
Test Distance 1000mm Field 800
Test Chart ISO Chart (→)
Premium Services We offer customized services and support for relevant development driver packages.
For any other requirements, please email:union@unimage.com.cn

High Image Quality and Stability
Superior Optical Performance: Fixed - focus lenses have a simpler structure. Their distortion control and light transmission are better than those of zoom lenses. They can maintain clear images especially in low - light environments (such as backlit conference room scenarios).
Reliability of Fixed View Angle: No need to frequently adjust the focal length, avoiding the risks of zoom motor noise and mechanical failures. Suitable for long - term stable operation.
Cost and Deployment Efficiency
High Cost - effectiveness: The cost of fixed - focus modules is significantly lower than that of electric zoom solutions. Suitable for small and medium - sized enterprises with limited budgets or standard conference rooms.
Quick Installation: No complex debugging required. Preset view angles (such as 60° - 90° horizontally) are adapted to common conference layouts (round tables, U - shaped tables).
Typical Scenarios
Personal/Small - scale Meetings: Single - person desks, 3 - 5 - person group discussions (the camera fixedly covers the seating area).
Educational Recording and Online Courses: Fixed - position shooting of instructors or blackboards, combined with AI tracking to realize automatic image cropping.
Embedded Device Integration: Integrated into conference tablets, Soundbars and other devices to meet basic video call needs.
