Camera Specification:
Streaming Media Camera Module Camera Datasheet

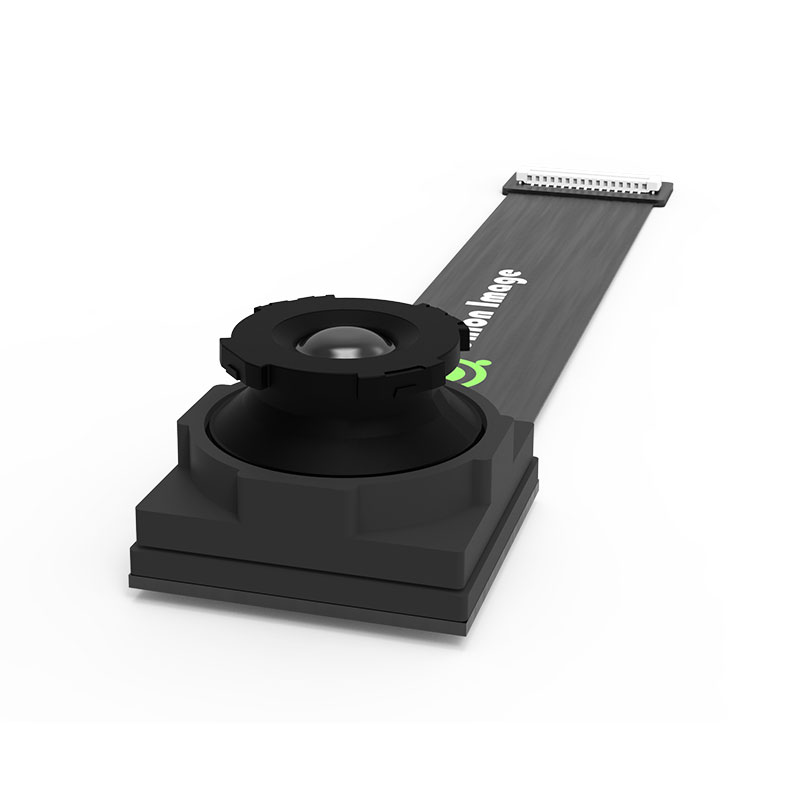

UI48-IMX586-Wide-MIPI-LHHLP40079
Application Field
Video Conferencing
Sensor
Sony
Package Type
COB
Chip Target Surface
1/2.0
Resolution
8K
Frame Rate
30fps
Interface
MIPI
ChromaType
Color
Shutter Type
Rolling
$88.00
$88.00
Inventory:
Want to know more about it, please email union@unimage.com.cn
  • FEATURES
  • APPLICATION
Lens 6206
EFL (Effective Focal Length) 3.574mm
F/NO (Aperture) 2.8±5%
Fov<D> (Field of View) D:120° H:96° V:73.8°
Lens Construction 6P
Max Image Circle Φ8.3mm
Focusing Range 73.5cm - 156.4cm
TV - Distortion <14.2%
Resolution Center: 1700; Periphery: 1300
Base UJP - 101(1000.75 - IF - VL, 0.1LH*9725 - FT - IF
Sensor IMX582 - AAJH5 - C
Silk - screen LHHPLP40079V3
Connector OK - 23GM030 - 04
EEPROM FM24C128D - CTF - T - G - A0
EEPROM I2C Address Write: 0xA0; Read: 0xA1
Driver IC
Driver IC I2C Address Write: —; Read: —
Sensor I2C Address Write: 0x20; Read: 0x21
Test Distance 1m Focus (17130 Teleconverter 26cm Focus)
Test Chart ISO Chart (66.7cm*50cm)



Premium Services We offer customized services and support for relevant development driver packages.
For any other requirements, please email:union@unimage.com.cn

High - quality lmage and Stability
Excellent optical performance: Fixed-focus lenses havea simple structure, with better distortion control andlight-passing capacity than zoom lenses. They canmaintain clear images especially in lowlightenvironments(such as backlit conference rooms).
Reliability of fixed viewing angle: No need to frequentlyadjust the focal length, avoiding the noise of zoommotors and the risk of mechanical failures, suitable forlong-term stable operation.
Cost and Deployment Efficiency
High cost effectiveness: The cost of fixed - focusmodules is significantly lower than that of motorizedzoom solutions,making them suitable for small-andmedium -sized enterprises or standard conferencerooms with limited budgets.
Quick installation: No complex debugging is required.Preset viewingangles(such as 60°-90° horizontally) aresuitable for common conference layouts (round tablesU-shaped tables).
Typical Scenarios
Personal/small-scale meetings: Single - person desks.3-5-person group discussions (the camera covers theseating area fixedly).
Educational recording and online courses: Fixedposition shooting of lecturersor blackboardscombined with Al tracking for automatic framecropping.
Embedded device integration: Integrated into devicessuch as conference tablets and Soundbars to meetbasic video -calling requirements.
