Camera Specification:
Streaming Media Camera Module Camera Datasheet

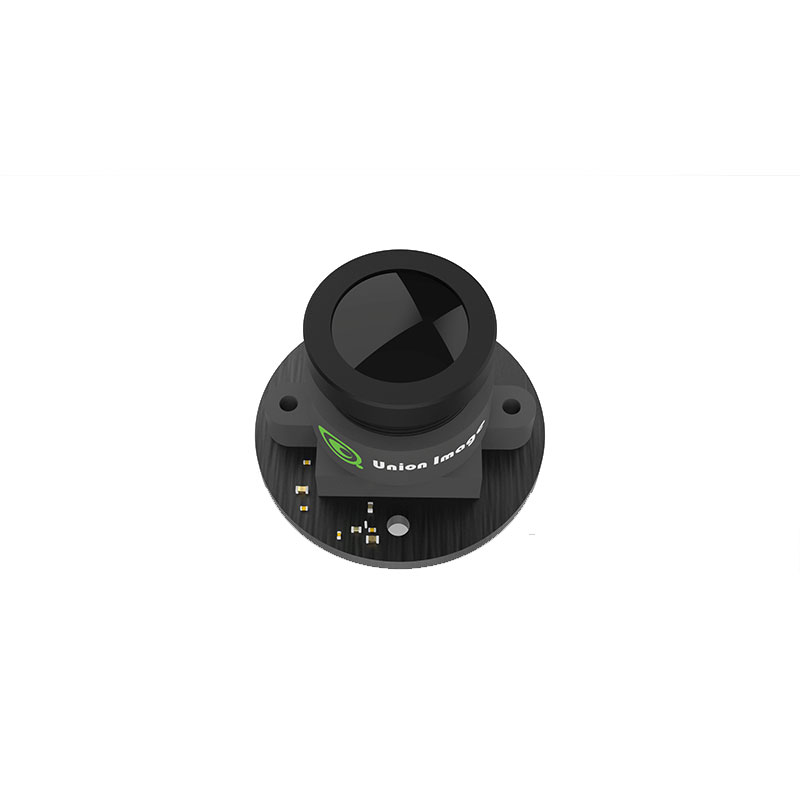

UI2-GC2053-1080P-USB-CHE2F3399
Application Field
Smart Home
Sensor
GC
Package Type
CSP
Chip Target Surface
1/2.9
Resolution
1080P
Frame Rate
30fps
Interface
USB2.0
ChromaType
Color
Shutter Type
Rolling
$72.00
$72.00
Inventory:
Want to know more about it, please email union@unimage.com.cn
  • FEATURES
  • APPLICATION
Chip type GC2053 - C47Y0
Array size 1920H x 1080V
AVDD (Analog Voltage) (Typ. 2.8V)
DVDD (Digital Voltage) (Typ. 1.2V)
DOVDD (IO Voltage) (Typ. 1.8V)
Sensor CRA (Chief Ray Angle) 12°
Sensor IIC Address SID = 0 0X6E 0X6F
Pixel Size 2.8um x 2.8um
EFL (Effective Focal Length) 2.56mm
F/NO (Aperture) 2.4±5%
View angle D146° H125° V68°
TV - Distortion < -33.4%
Focusing range AT = 25CM; 16.7CM - 50.5CM
Chief Ray Angle 15°
COMPOSITION 6G + IR
FILTER 650nm

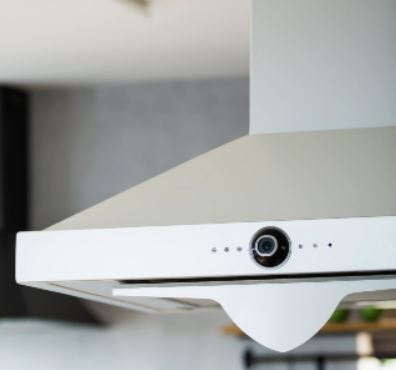

Smart Kitchen Automation
Adaptive suction adjustment: Dynamically adjusts thefan speed according to the amount of lampblack (e.g.automatically switches to the maximum setting duringstir -frying).
Cooking process recording: Records short videos togenerate a "cooking log" for sharing on socialplatforms or for review and learning.
Health and Safety Protection
Carbon monoxide warning: integrate with gas sensorsto detect gas leaks and interface with ventilationsystems.
Dry-burn prevention reminder: Al identifies theevaporation state of water in the pot and promptlyreminds users to turn off the stove.
Upgraded Interaction Experience
AR projection assistance: Locates the stove throughthe camera and projects virtual cooking - heatindications or timers onto the countertop.
Voice -vision integration: For example, the voicecommand "Check the state in the pot" triggers thecamera to take a photo and push it to the mobilephone.
