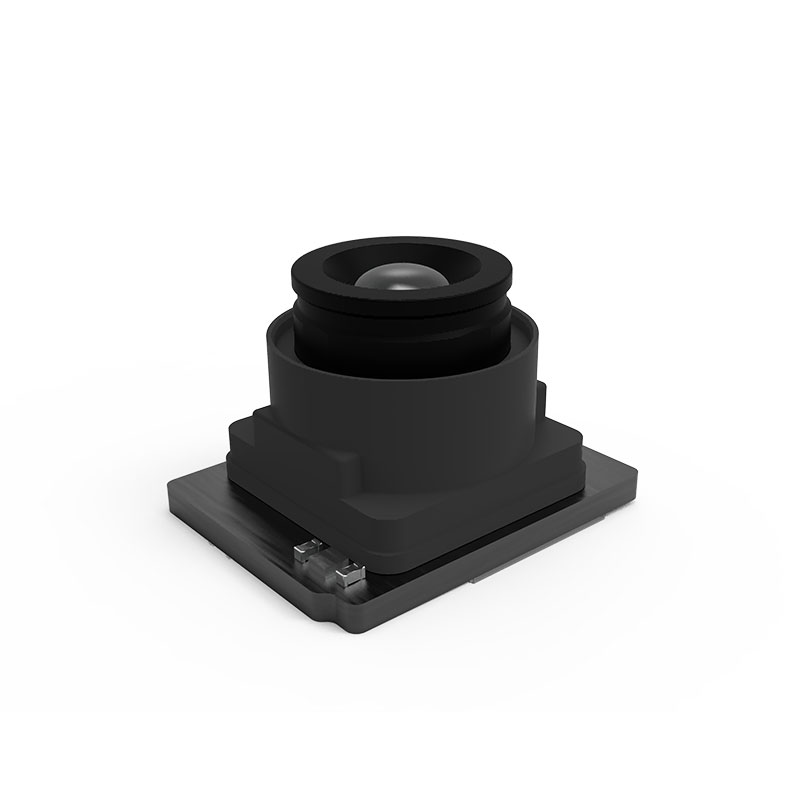

| Substrate | PCB |
| Module size | 16.012.510.5mm |
| Sensor Type | SC520XS-CR5NN00-W |
| Array Element | 8784H*6064V |
| Pixel Size | 0.7um x0.7um |
| Power Supply | |
| - Analog Power (AVDD) | 2.8V±0.1V |
| - Digital Power (DVDD) | 1.2V ± 0.1V |
| - I/O | 1.8V ± 0.1V |
| Temperature Range | |
| - Operating Temperature Range | -30°C ~+70°C |
| - Optimal Operating Temperature Range | 0°C ~+45°C |
| Max Frame rate | 8768 (H) × 6048 (V) @ 15 fps 10 - bit |
| Output Formats | RAW RGB / QCell RGB |
| Encapsulation mode | COB |
| Lens size | 1/2.5” |
| Lens Construction | 1G4P |
| F/No | 2.8 |
| EFL (Effective Focal Length) | 4.49mm |
| Optical FOV (Field of View) | D77.3° |
Premium Services We offer customized services and support for relevant development driver packages.
For any other requirements, please email:union@unimage.com.cn
For any other requirements, please email:union@unimage.com.cn
Consumer - grade Aerial Photography
Technical Features: 4K/8K video + 3 - axis gimbal anti - shake
Application Scenarios: Travel photography, event recording, film and television production
Agricultural Monitoring
Technical Features: Multispectral/hyperspectral imaging + NDVI (Normalized Difference Vegetation Index) analysis
Application Scenarios: Crop health assessment, pest and disease early warning, precision fertilization
Surveying and Mapping & Modeling
Technical Features: RTK (Real - Time Kinematic) positioning + oblique photography (five lenses)
Application Scenarios: Terrain surveying and mapping, building 3D modeling, earthwork calculation
Emergency Rescue
Technical Features: Thermal imaging + zoom lens (30x optical)
Application Scenarios: Forest fire monitoring, night search and rescue, disaster area assessment
Industrial Inspection
Technical Features: LiDAR (Light Detection and Ranging) + obstacle avoidance system
Application Scenarios: Power line inspection, wind turbine blade detection, pipeline leakage positioning
Environmental Monitoring
Technical Features: Gas sensor + wide - angle lens
Application Scenarios: Air quality detection, pollution source tracking, wildlife observation
