Camera Specification:
Streaming Media Camera Module Camera Datasheet

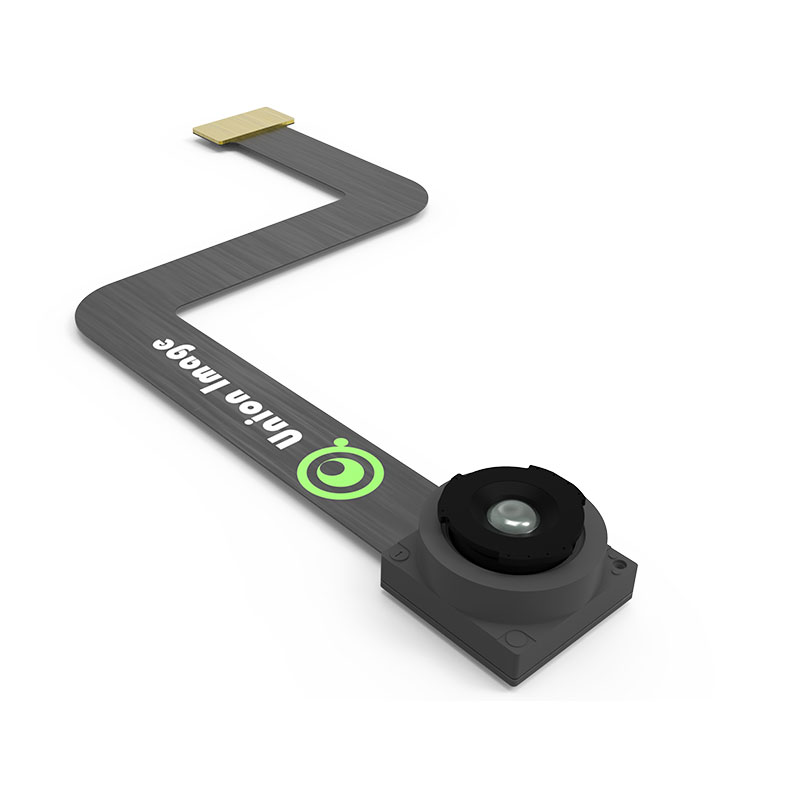

UI5-SC520CS-RGB-MIPI-CZM5F4631
Application Field
Sweeping robot
Sensor
SC
Package Type
COB
Chip Target Surface
1/6.0
Resolution
-
Frame Rate
-
Interface
MIPI
ChromaType
Color
Shutter Type
Rolling
$32.00
$32.00
Inventory:999
Want to know more about it, please email union@unimage.com.cn
  • FEATURES
  • APPLICATION
Chip type SC520CS - CRMNNO0
Array size 2600H x 1960V
AVDD (Analog Voltage) (Typ. 2.8V)
DVDD (Digital Voltage) (Typ. 1.2V)
DOVDD (IO Voltage) (Typ. 1.8V)
Sensor CRA 31.9°(Img90%)
Sensor IIC Address 0X20(W)/0X21(R)
Pixel Size 1.12um×1.12um
EFL (Effective Focal Length) 1.4mm
F/NO (Aperture) 2.2
View angle D115.5° H95° V76°
TV - Distortion 11%
Focusing range 25cm - INF
Chief Ray Angle <33.2°
COMPOSITION 4P
FILTER Blue glass 648±5nm pass



High -precision Obstacle Avoidance and ObjectRecognition
Detection of small obstacles: ldentifies low .lying or transparent objects on the groundsuch as socks,data cables,and toys(traditionally,LiDAR is prone to missingthese).
Avoidance of hazardous objects: Detects petfeces, liquid spills, and sharp objects (suchas nails),triggering detours or halting.Tracking of moving objects: Evades movingpets or children, enhancing safety.
Scene Understanding and intelligent CleaningRecognition of floor materials: Differentiatesbetween carpets,tiles, and wooden floorsthroughtexture and color,automaticallyadjusting suction power or mopping watervolume.
Stain detection:ldentifies local dirty areassuch as coffee stains and oil stains,initiatingtargeted deep-cleaning.
Automatic zoning and map annotation: Vision-assisted SLAM(Simultaneous Localizationand Mapping)identifies room types(such askitchens and bedrooms) and marks restrictedareas.
Enhanced Human-Machine InteractionGesture control:Recognizes usergesturecommands(such as area-selection cleaningand pause) through the camera.
Voice interaction assistance:Understandsuser commands(such as "Clean under thedining table")by combiningvisualinformation.
