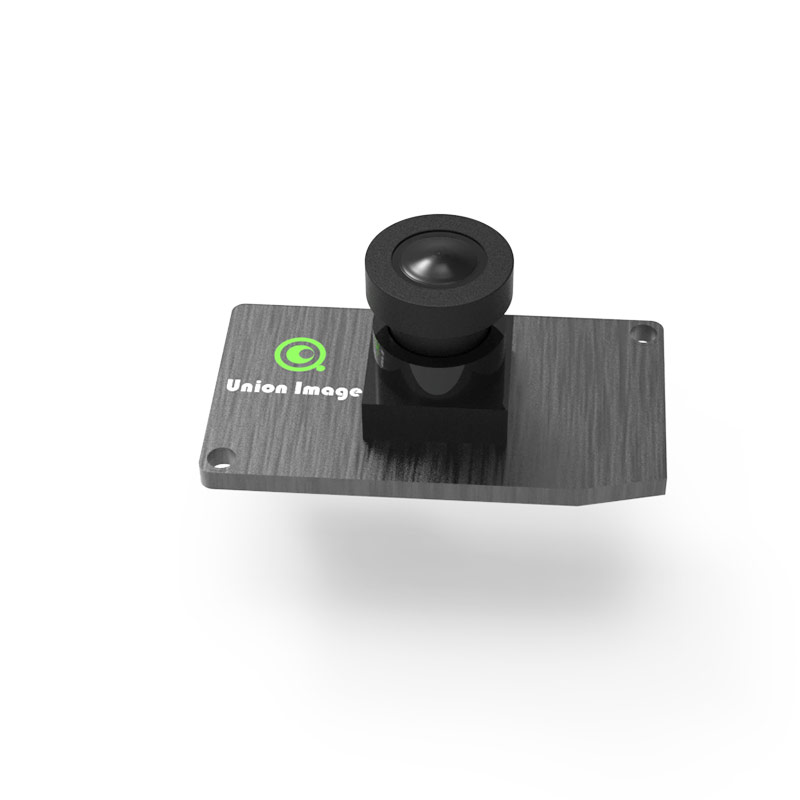

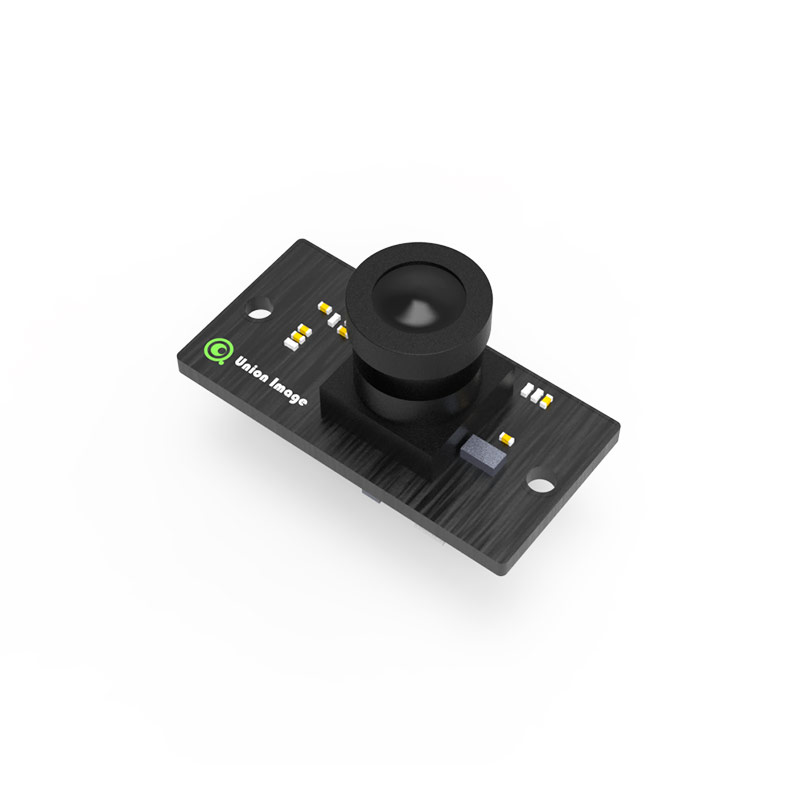

| Lens Construction (CONSTRUCTION) | 1G3P |
| Effective Focal Length (EFL) | 1.96±5% |
| Aperture (F NO.) | 2.2±5% |
| Field of View (FOV) | D138° H110° V60° |
| Distortion | <-16% |
| Focusing Range | — |
| Image Circle | Φ4.3mm |
| CHIEF RAY ANGLE | 16.2° |
| Pixel Size | 2.72um*2.72um |
| Active Pixel Array (Resolution) | 1280*720 |
| Optical Format | 1/4.5 inch |
| Sensor I2C Address (Sensor IIC) | 0x6e (W)/0x6f (R) |
| PDN Control (High/Low Effective) | — |
| RESET Control (High/Low Effective) | Low Effective |
| IR Type (IR/BG) | IR (Built - in) |
| CHIEF RAY ANGLE | 12° |
For any other requirements, please email:union@unimage.com.cn

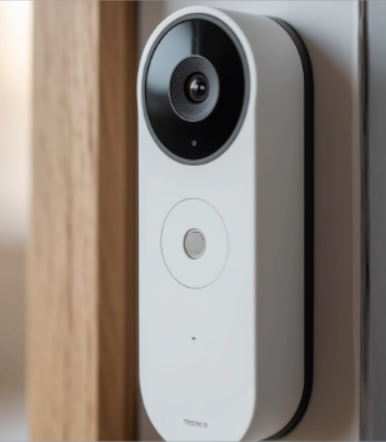

Home Safety Scenarios
Express/Home -making Services: Authorize temporarypasswords remotely. The camera records the entireservice process to prevent property loss.
Caring for Elderly Living Alone: Al identifies abnormalbehaviors (such as not going out for a long time) andautomatically notifies emergency contacts.
Community and Apartment Management
Visitor Trails: Automatically generate entry and exitrecords (time + captured photos). The propertymanagement can trace external personnel.
Intelligent Elevator Control Linkage: When the doorlock is unlocked, it triggers the elevator to call to thecorresponding floor(requires connection to thebuilding system).
Commercial and Short -term Rental Scenarios
Contactless Check -in: lssue virtual keys through theApp. The camera verifies the tenant's identity andrecords the check -in time.
Energy Management Linkage: When the door lock isunlocked, it automatically turns on indoor lights/air .conditioners to enhance the user experience.
